• Safely stores and fast-charges up to 10 smartphones, tablets and other USB devices
• USB-C Power Delivery (PD 3.0) charging ports with power up to 3 A / 18 W per port and 180 W total
• Sturdy, secure, powder-coated metal housing; lockable with two included keys

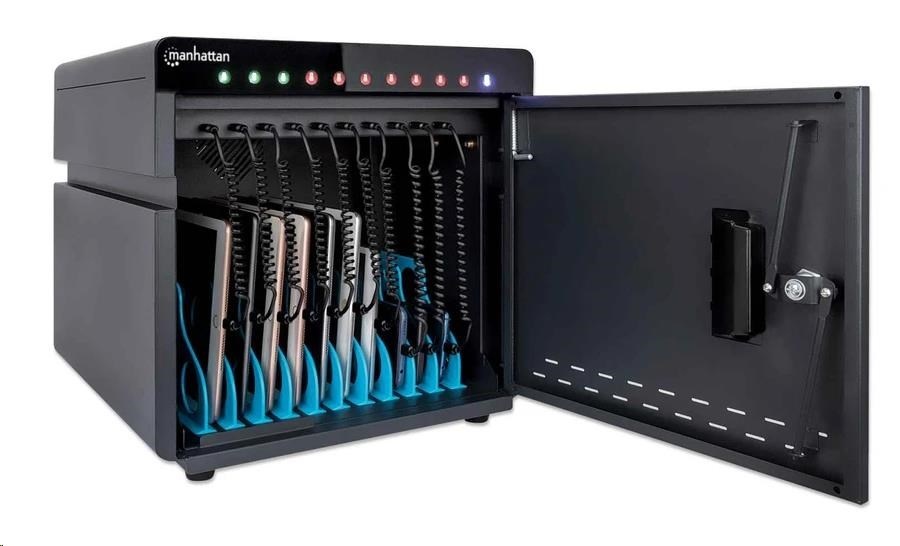

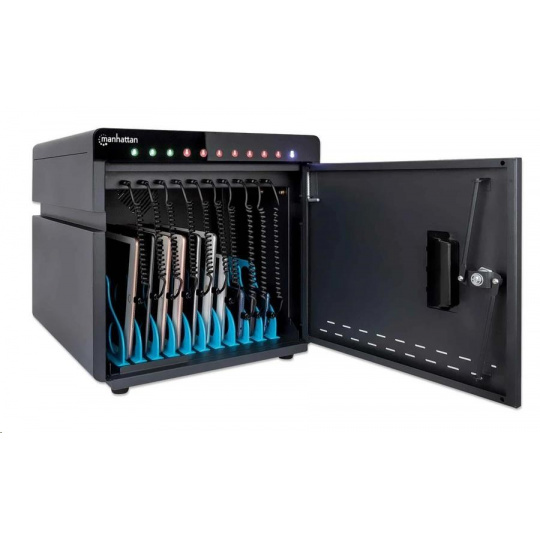

Desktop Charging Cabinet - a charging solution for hospitality, educational environments and more

Visitors, guests and employees bring their mobile devices to all sorts of venues. Give your people a way to charge the drained batteries of their smartphones or tablets with the 10-Port Desktop Charging Cabinet - 180 W from Manhattan. It's the ideal charging solution for restaurants, schools, gyms, doctor’s offices, universities, hotels, car rental agencies and more.

Fast-charging with state-of-the art device safety and without wall chargers

Mobile users want their devices back quickly. Thanks to the Power Delivery 3.0 technology on all 10 USB-C ports, they won’t have to wait long. With power per port up to 3 A / 18 W, smartphones, tablets and other USB devices are ready to go in no time. The front-mounted LEDs show you when a battery is fully charged. All these expensive devices are a lot of responsibility, but the safety mechanisms in this Cabinet are just as extensive. It offers protection against overload, overcurrent, short circuit, voltage spikes and even lightning strikes.

Physical security is key

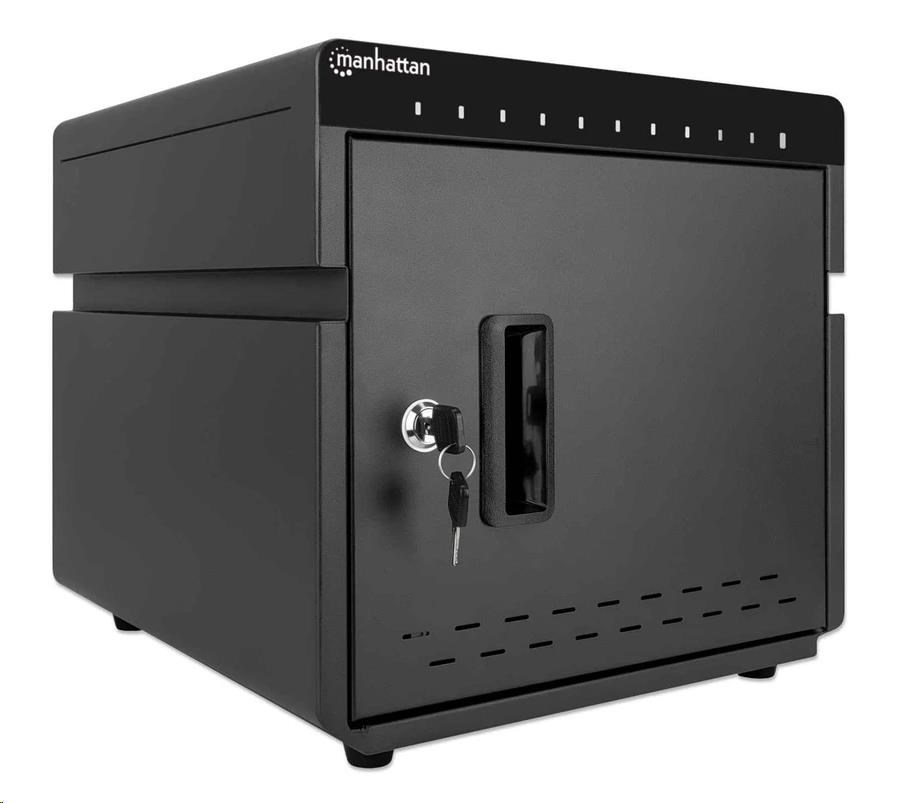

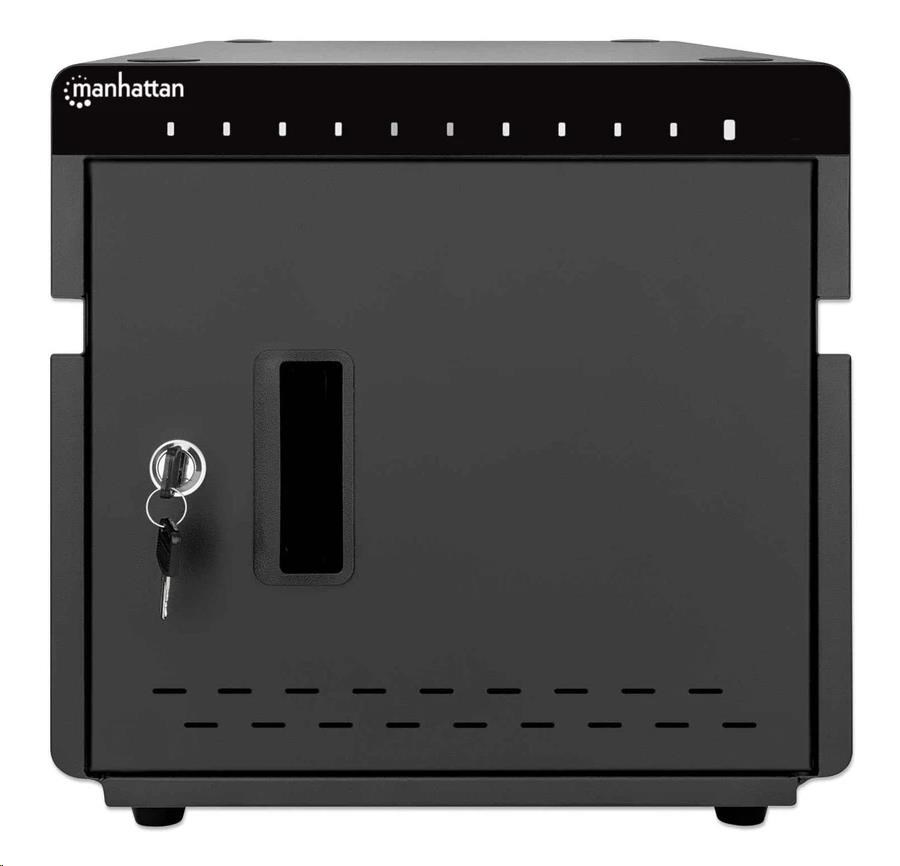

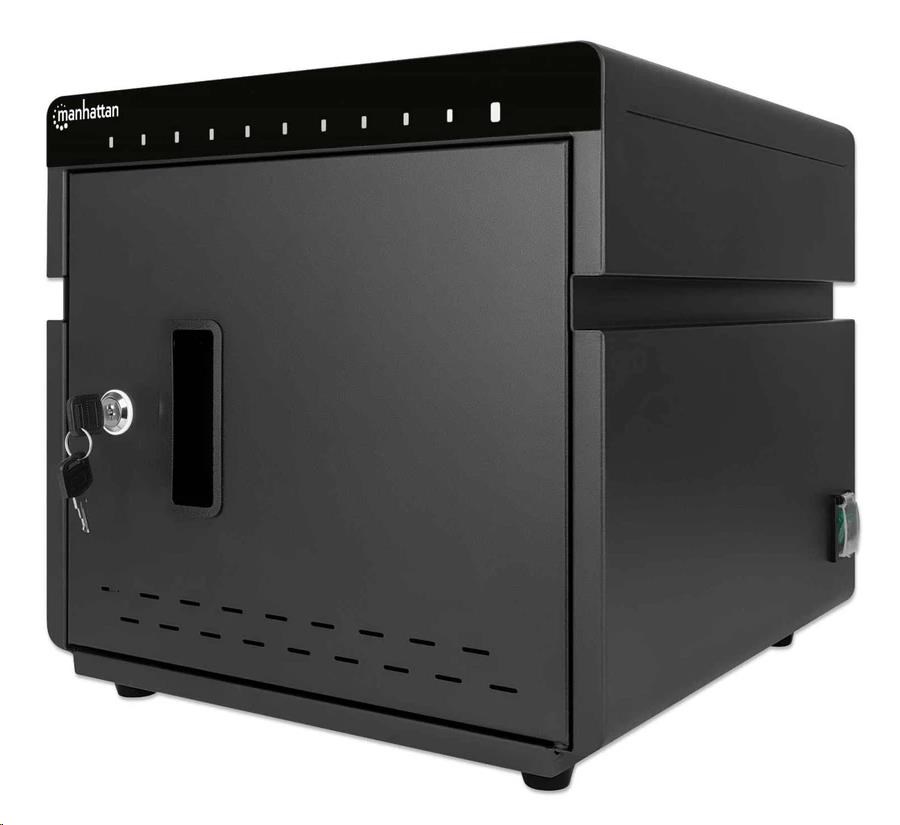

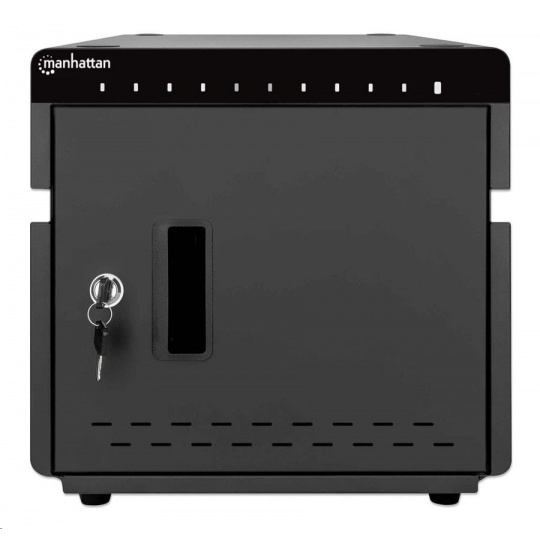

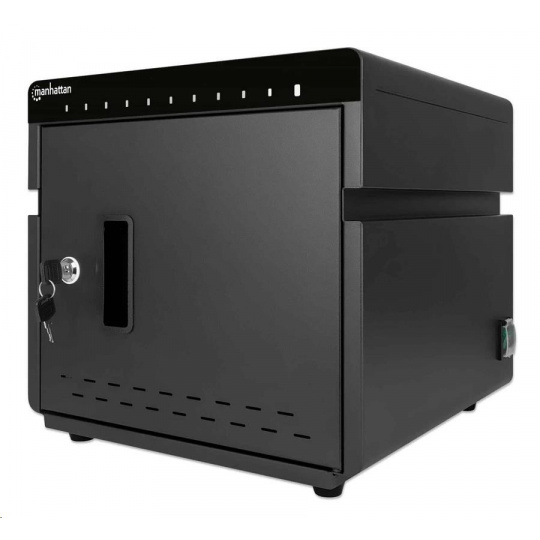

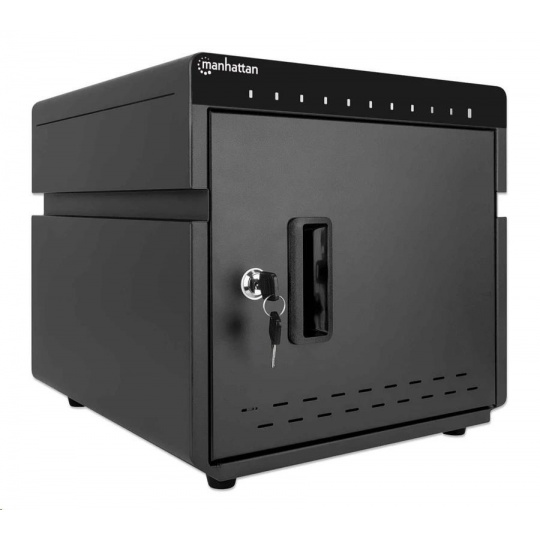

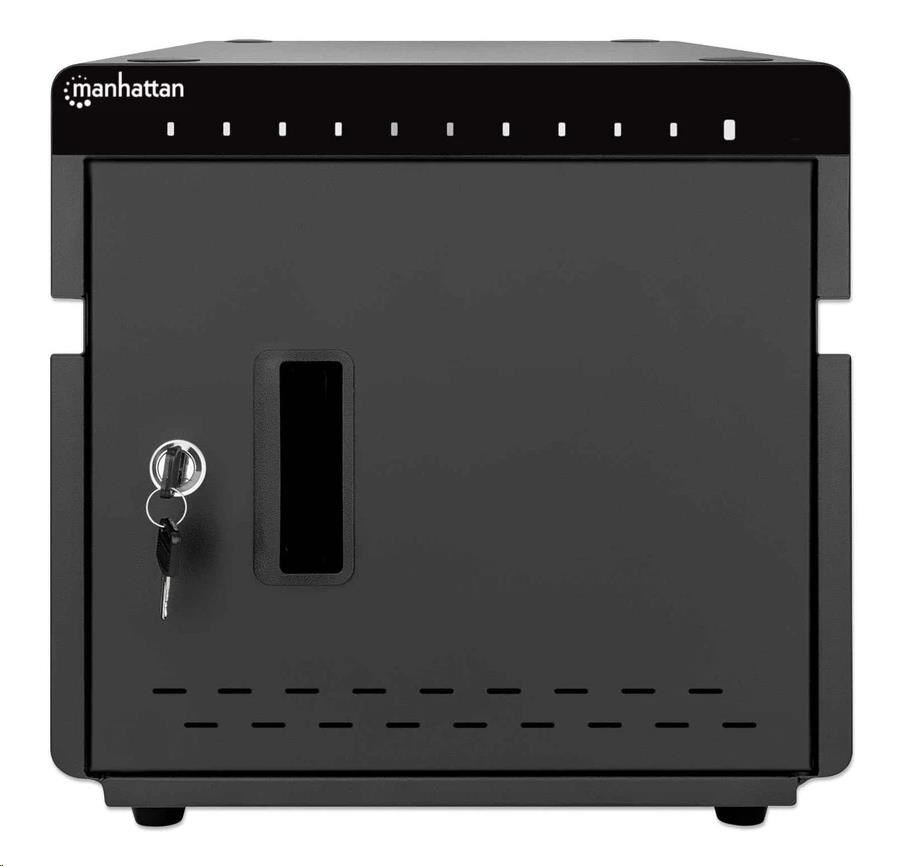

Thieves and vandals don’t stand a chance against the sturdy, durable metal housing of this Desktop Charging Cabinet. Lock it securely with the included 2-piece key set and give access only to authorized personnel. A built-in fan and ventilation slots dissipate heat and keep all devices cool. Rubber feet prevent the Cabinet from slipping on any surface.

Organized and versatile

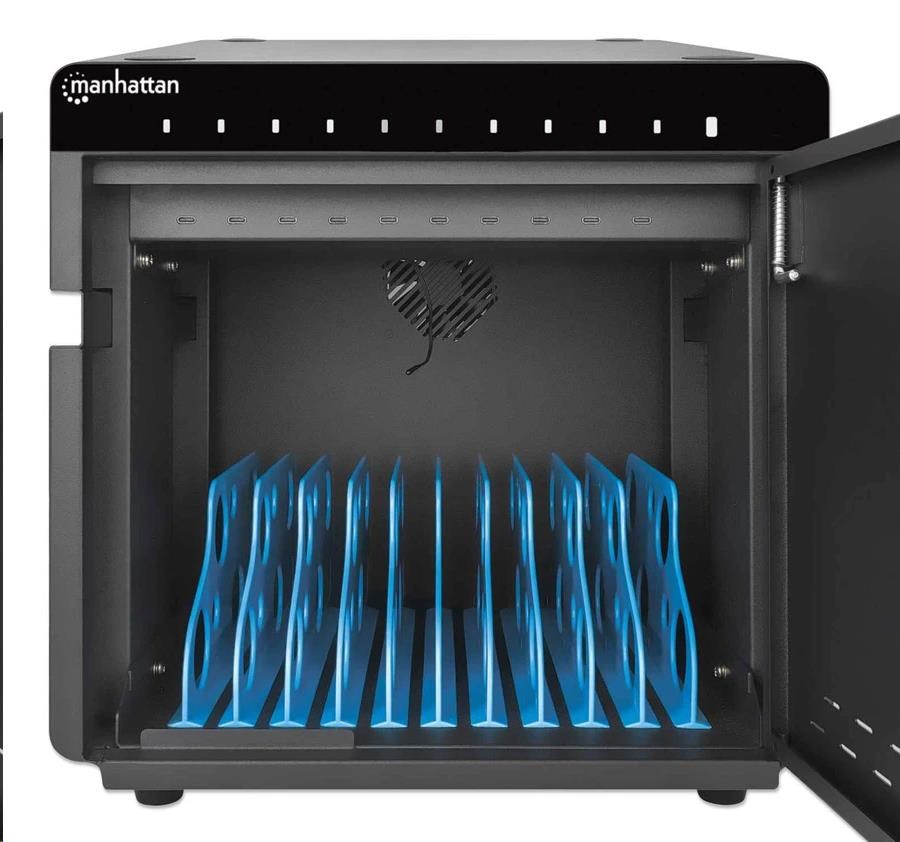

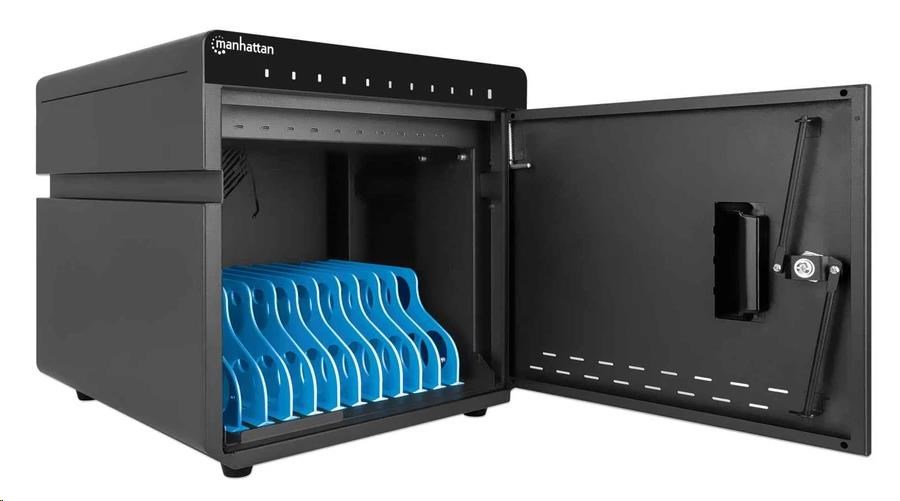

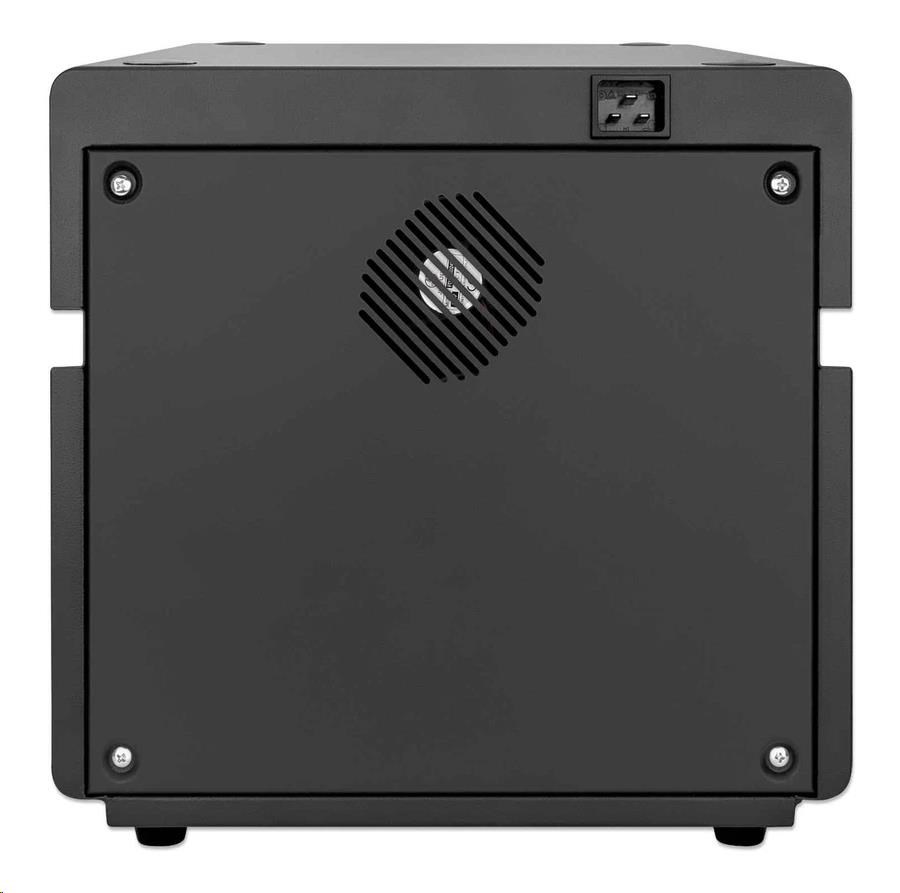

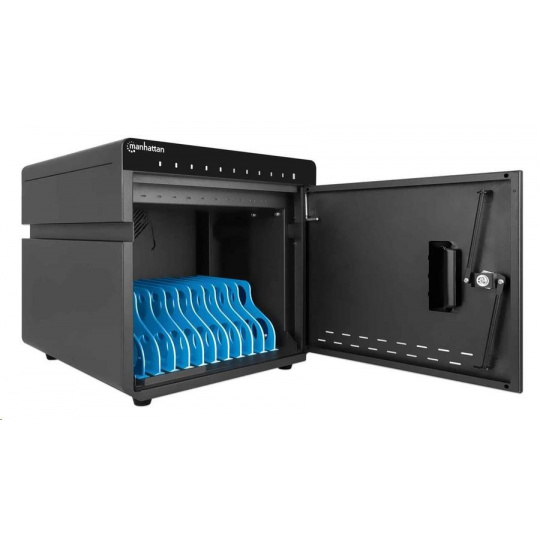

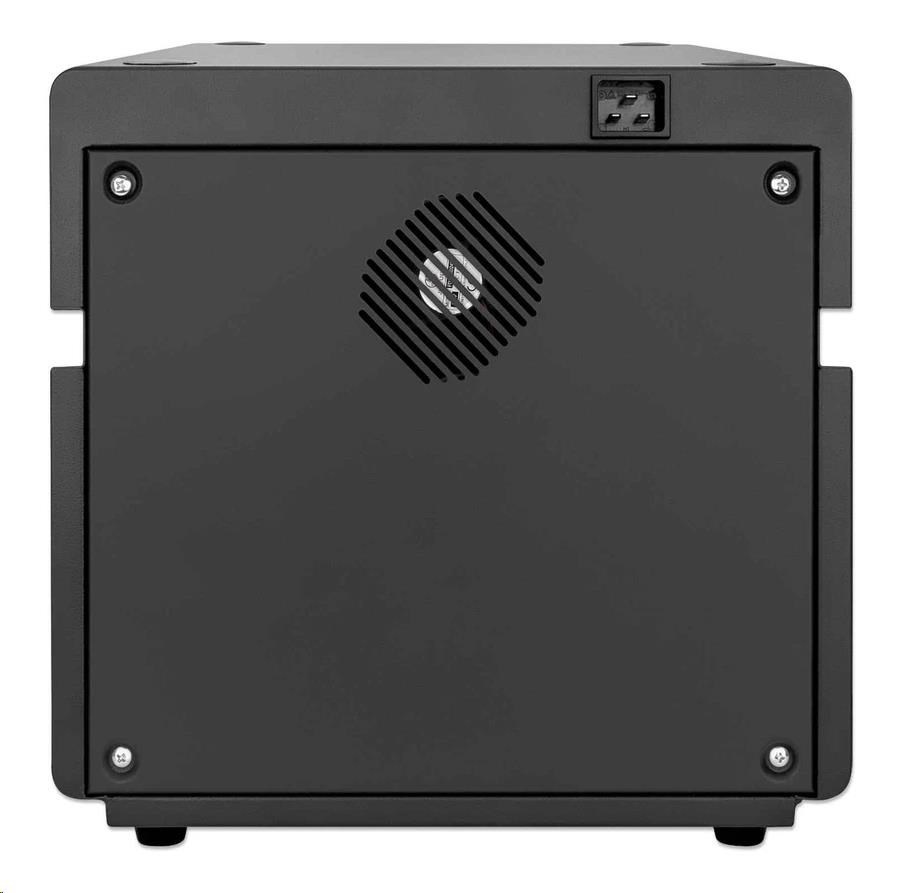

Keep your devices organized in the 10 bays with 264 (D) x 22 (W) x 235 (H) mm / 10.39 x 0.87 x 9.25 in. each. Use the cable management built into the dividers to structure your charging cables (available from Manhattan). As this Charging Cabinet features USB-C ports instead of AC outlets, you do not need additional wall chargers. The AC input on the back is a C20 connector that lets you replace the included power cable with other cables based on your region.

• Safely stores and fast-charges up to 10 smartphones, tablets and other USB devices up to 10"
• USB-C Power Delivery (PD 3.0) charging ports with power up to 3 A / 18 W per port and 180 W total; no additional wall chargers required
• Protection against overload, overcurrent, short circuit, voltage spikes and lightning strikes
• Sturdy, secure, powder-coated metal housing; lockable with two included keys
• Built-in safety with fuse between mains power and power supply
• Bays [264 (D) x 22 (W) x 235 (H) mm each] with cable management built into the dividers
• Silent fan and ventilation slots for maximum airflow and cooling efficiency
• LED indicators for easy status monitoring
• Rubber feet for non-slip desktop use
• Not stackable

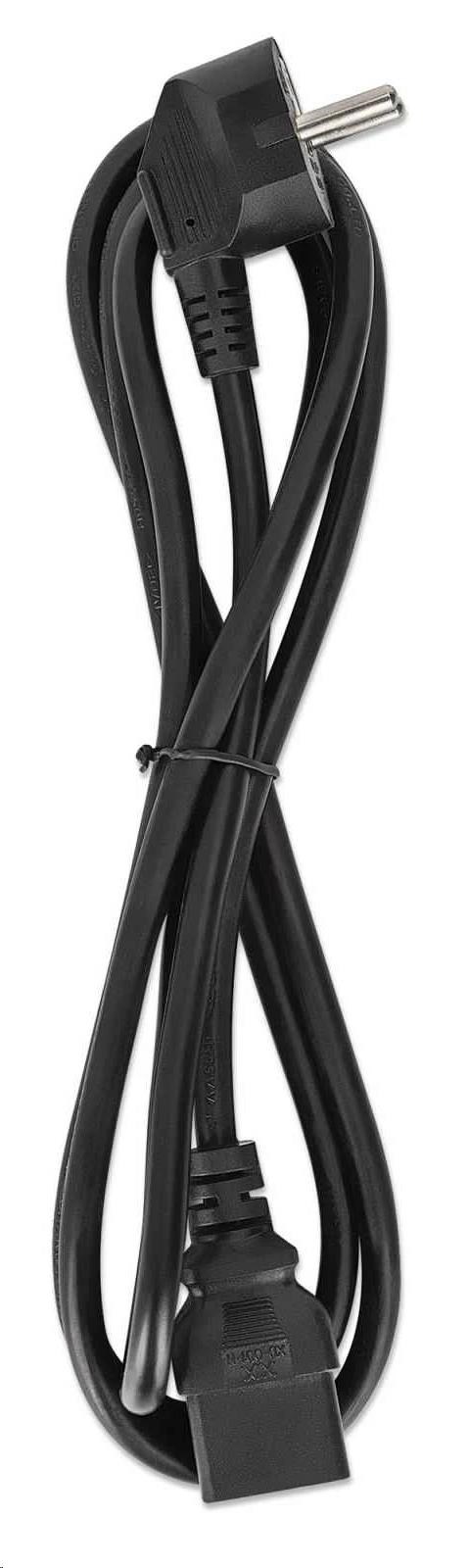

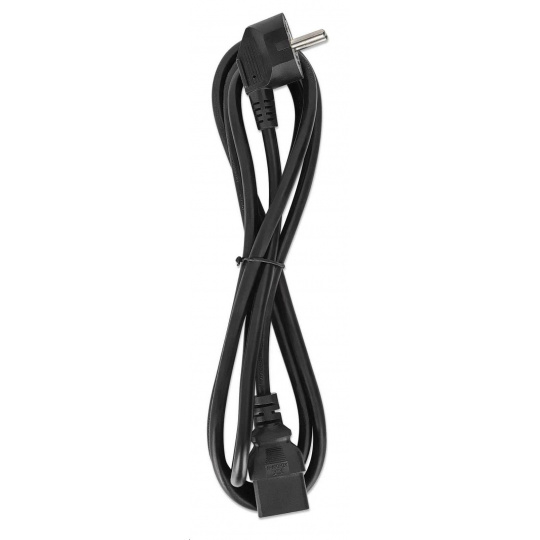

• Universal AC input with C20 connector; C19 to CEE 7/4 EU power cable included, can be exchanged for different regional versions
• Three-year warranty

Standards and Certifications

• PD 3.0
• CE
• RoHS

  Electrical
• AC input: 110 - 240 V; 16 A; 50 - 60 Hz
• USB-C output: 5 – 12 V; maximum 3 A; 18 W; 10 output ports with 180 W total
• Voltage/current settings (maximum):
  - USB-C:
  - 5 V / 3 A
  - 9 V / 2 A
  - 12 V / 1.5 A
• Made for tablets and handheld devices

  Protection Characteristics
• Short-circuit (SCP) with auto-recovery mode
• Overvoltage (OVP) with auto-recovery mode
• Overcurrent (OCP) — current limit: 150% (max)

  Physical
• On/off switch
• LED status indicators
• Housing: 1 - 1.5 mm cold-rolled steel
• External cabinet dimensions: 370 (D) x 360 (W) x 345 (H) mm (14.57 x 14.17 x 13.58 in.)
• Bay dimensions (10): 264 (D) x 22 (W) x 235 (H) mm (10.39 x 0.87 x 9.25 in.)
• AC Power cable length: 2 m (6.56 ft.)
• Weight: 15 kg (33.07 lbs.)

  Operating Environment
• Operation temperature: 0 - 45°C (32 - 113°F)
• Storage temperature: -15 - 45°C (-5 - 113°F)
• Humidity (noncondensing): 20 - 80%

  Package Contents
• 10-Port Desktop Charging Cabinet - 180 W
• AC Power cable, 2 m (6.56 ft.)
• Two door keys
• Instructions

  Please note: If the cabinet cannot be turned on, remove the rear housing cover to check and reset the fuse switch.
