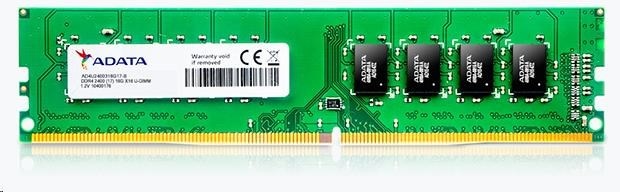

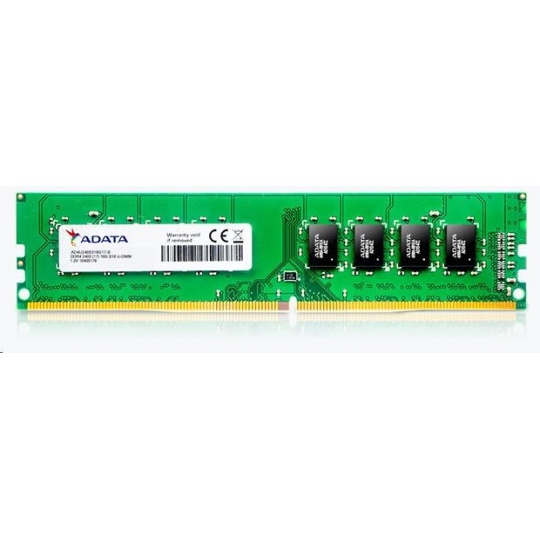

ADATA DIMM DDR4 4GB 2400MHz CL17 512x16 Premier
Popis a parametry
ADATA DIMM DDR4 4GB 2400MHz CL17 512x16 Premier
Premier Series DDR4 2400 288-Pin Unbuffered-DIMM Memory - DDR4. THAT'S HOW UPGRADE IS SPELLED.
ADATA Premier DDR4 2400 unbuffered U-DIMM memory is the latest upgrade solution that supports Intel's newest platforms for faster data transfer and enhanced power efficiency. Utilizing a 288-pin design, operating voltage has been reduced from 1.5V on DDR3 to 1.2V, which not only helps save power by 20%, but also boosts transfer bandwidth speed to 19.2GB/s. Every chip in ADATA memory modules meets strict JEDEC and RoHS standards, ensuring compatibility, stability, and environmentally friendly products.
Features
- Complies with JEDEC standards
- RoHS compliant
- Supports Intel Skylake platform, future proof for Kaby Lake and Cannon Lake platforms
- Lifetime Warranty
TECHNICAL SPECIFICATIONS
| Module Type | U-DIMM |
| Form Factor | Standard 1.23" height |
| Speed | DDR4 2400 MHz |
| Module size | 4GB / 8GB / 16GB |
| CAS Latency | 17- 17 - 17 |
| Standard | JEDEC |
| Interface | 288-pin |
| Power Supply | VDD and VDDQ = 1.2V±0.06V |
| DRAM activation power supply | VPP= 2.5V (+0.25V / -0.125V) |
| DRAM spec/VCC | DDR4 STD 1.2V |
| Operating temperature | 0°C to 85°C |
| Storage temperature | -55°C to 100°C |
| Warranty | Lifetime |
.
ParametryPorovnání
Technologie paměti RAM
DDR4
Využití paměti
PC
Velikost paměti RAM (GB)
4
Frekvence paměti RAM (GHz)
2,4
Časování CAS
17
