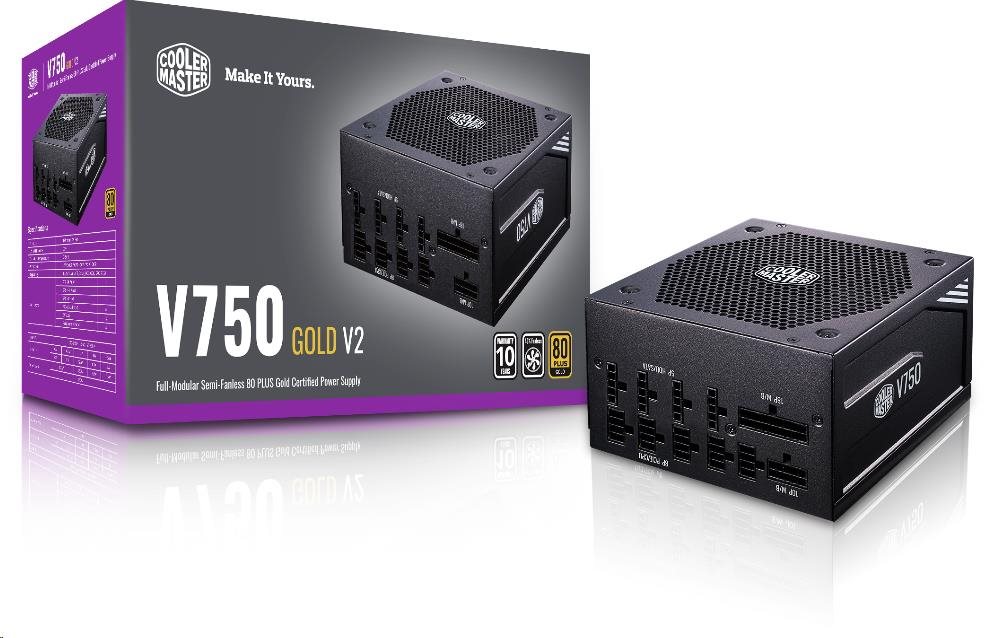

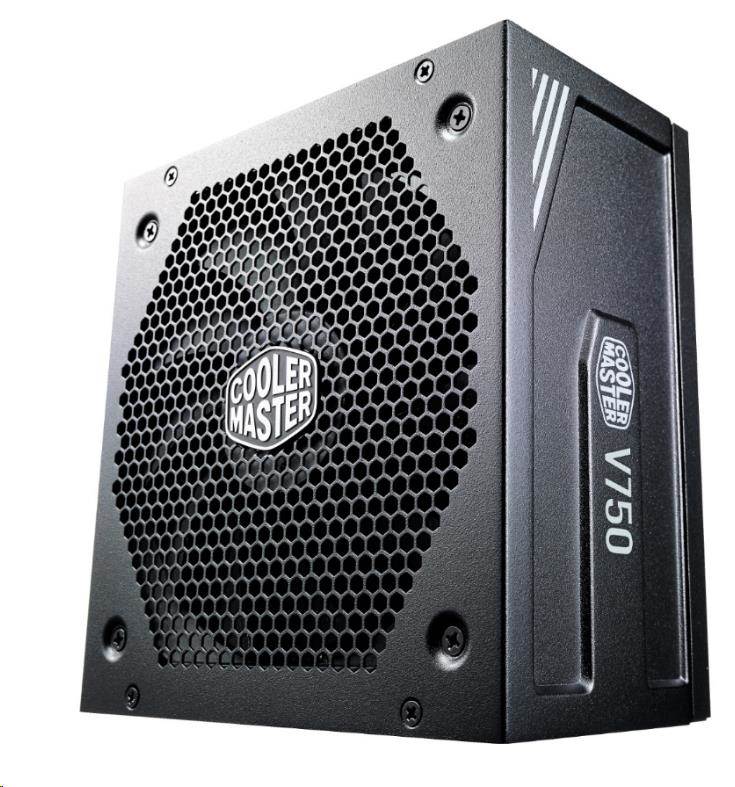

Cooler Master zdroj V750 Gold-v2, 750W, 80+ Gold, fully modular

Výkon zdroje (W):750; Formát zdroje:ATX; Konektory:8pin CPU 2x, PCIe 6-pin, PCIe 8-pin, PCIe 8-pin, SATA 15-pin; Konektory pro základní desku:ATX 24-pin; Modulární kabeláž; Efektivita zdroje:80 Plus Gold.... více
Běžná cena: 3 791  (-0%)
3 132.23 Kč bez DPH
Skladem > 5 ks
3 790 Kč
ks
Vyberte si zvýhodněné balení
Množstevní slevy
Kód: 1566115
Kód dod.: MPY-750V-AFBAG-EU
EAN: 4719512091579
Záruka: 10 Rok(ů)
Výrobce: CoolerMaster
Popis a parametry

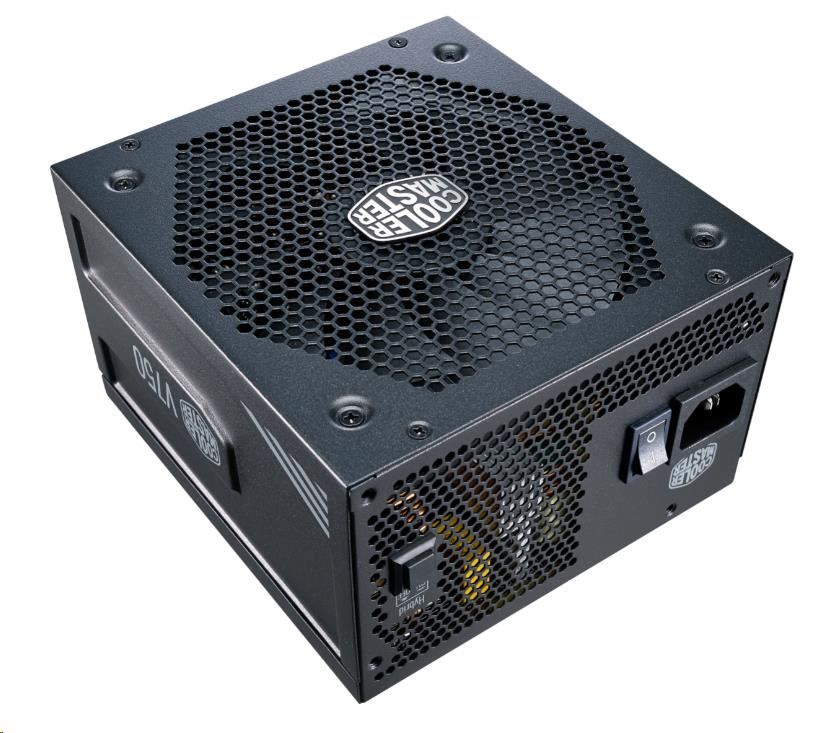

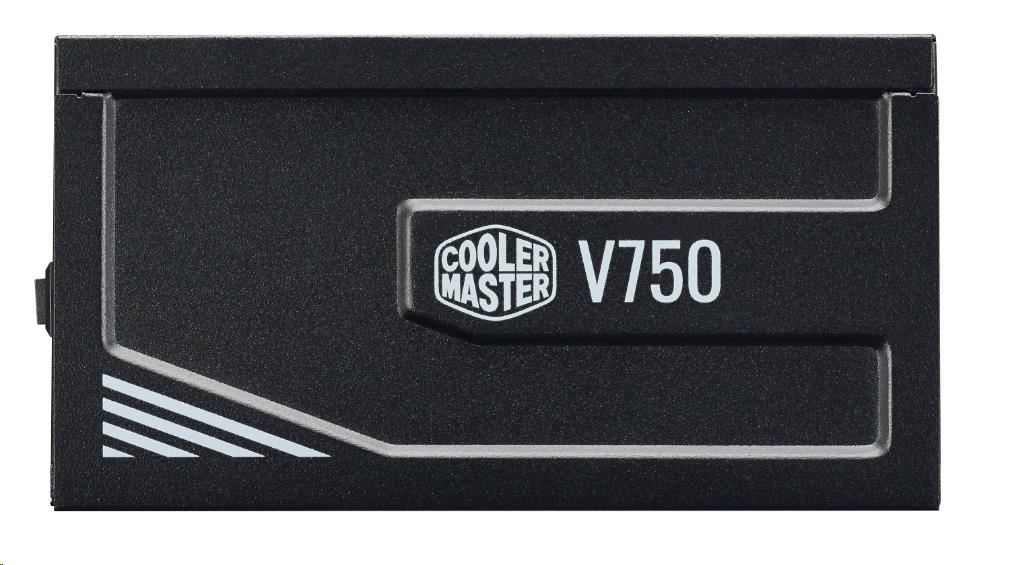

Cooler Master zdroj V750 Gold-v2, 750W, 80+ Gold, fully modular

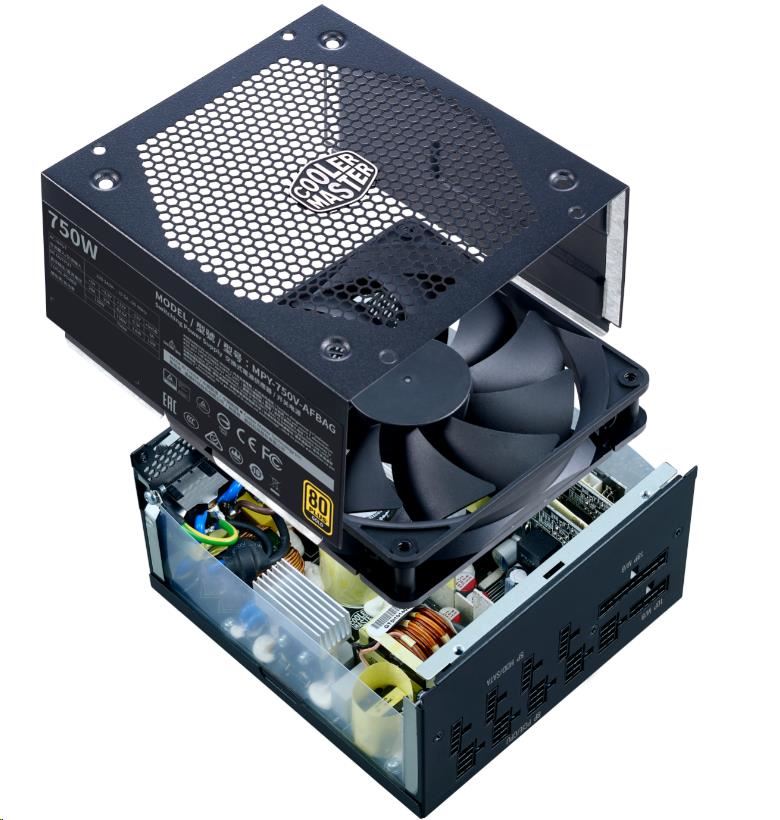

The V Gold - v2 offers the high quality user experience you’ve always wanted. Enjoy an 80 Plus Gold efficiency rating, full-modular cabling, semi-fanless operation, a 135mm FDB fan, 16AWG PCIe high efficiency cables, and a 10 year warranty. Improvements and innovations from the components to the cables deliver a power supply unit fit for any and every type of PC. The 100% Japanese capacitors, half-bridge LLC resonant convertor, and DC-DC circuitry deliver a product that even the pros can respect, at 550, 650, 750, and 850 watt levels. Now available with white casing and cables.

80 PLUS Gold Certified : This certification guarantees a typical efficiency of 90% under normal operating conditions.

Performance Driven Topology : The half-bridge LLC resonant converter and DC-DC technology offer reliable and stable voltage outputs for safer, more reliable performance and higher efficiency.

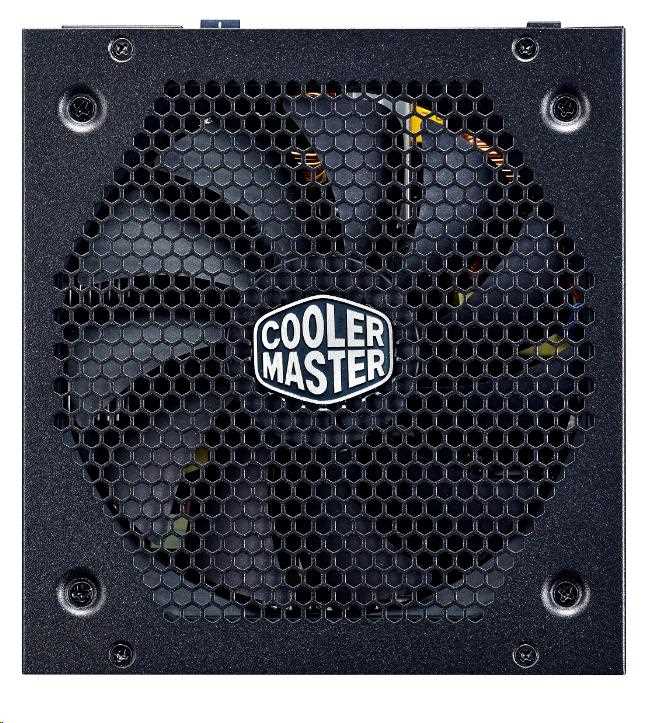

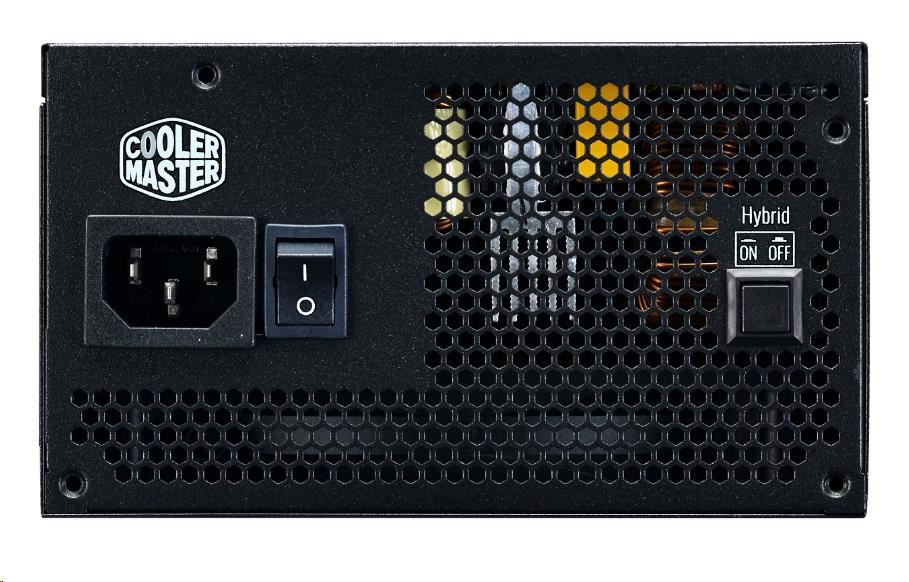

Semi-Fanless Mode with Hybrid Switch : The 135mm FDB fan is semi-fanless up to 40% load and can be manually turned off with a hardware based hybrid switch.

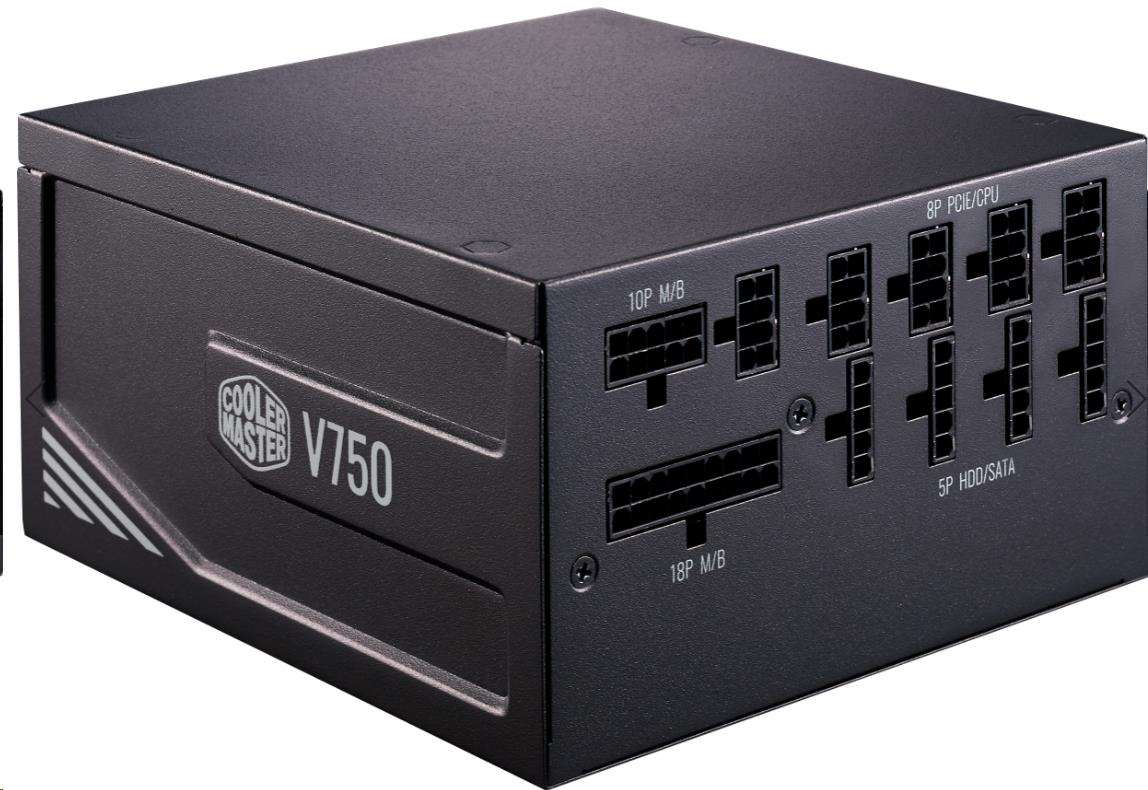

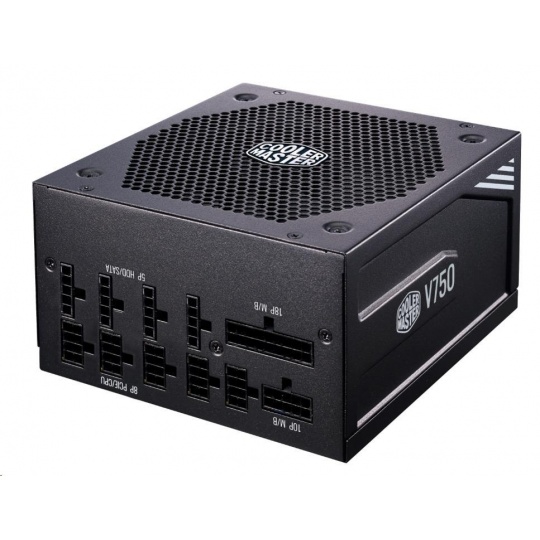

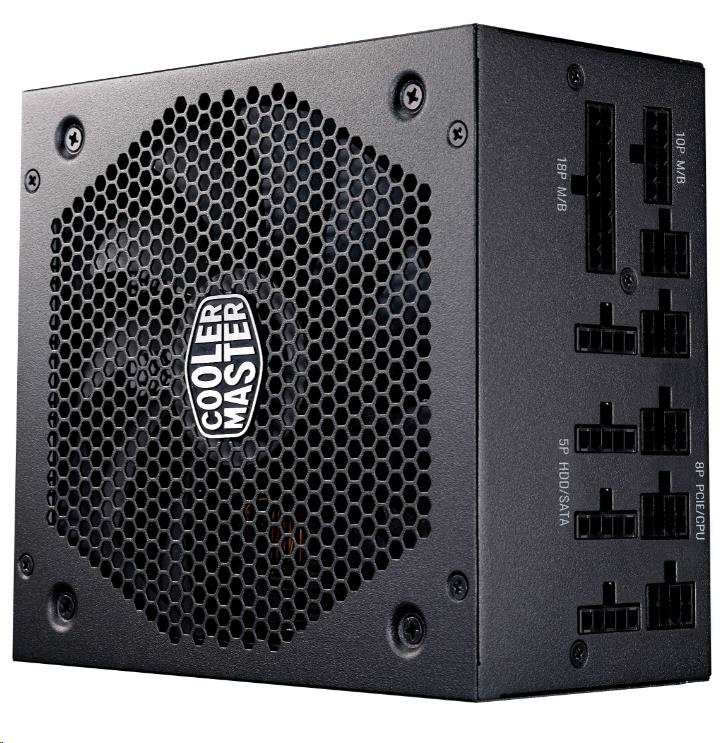

Full-Modular Cabling : Modular cables reduce clutter, increase airflow, and improve overall efficiency and thermal performance.

16 AWG PCI-e Cables : The thicker 16 AWG PCI-e cables allow for higher currents, thereby improving both efficiency and safety.

10 Year Warranty : This unit comes with a standard limited manufacturing warranty of 10 years from the date of purchase.

Product Name

V750 Gold - v2

Item Code

MPY-750V-AFBAG

ATX Version

ATX 12V Ver. 2.52

PFC

Active PFC

Input Voltage

100-240V

Input Current

10-5A

Input Frequency

50-60Hz

Dimensions (L x W x H)

160 x 150 x 86mm

Fan Size

135mm

Fan Bearing

FDB

Fan Speed

1545 RPM

Noise @ 20%

0 dBA

Noise @ 50%

23.6 dBA

Noise @ 100%

32.5 dBA

Efficiency

90% @ Typical Load

80 PLUS Rating

80 PLUS Gold

ErP 2014 Lot 3

Yes

Power Good Signal

100-500ms

Hold Up Time

17ms

MTBF

>100,000 hours

Protections

OVP / OPP / SCP / OCP / UVP / OTP

Regulatory

CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB

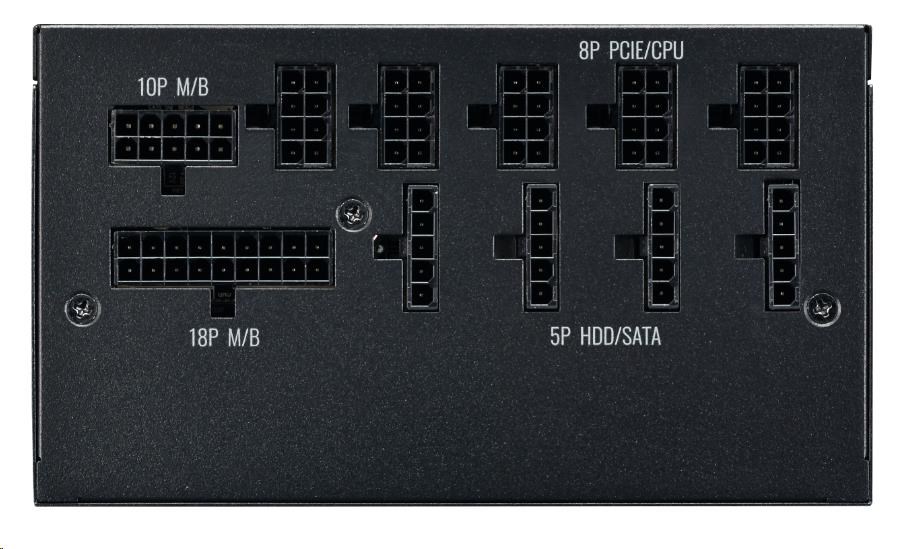

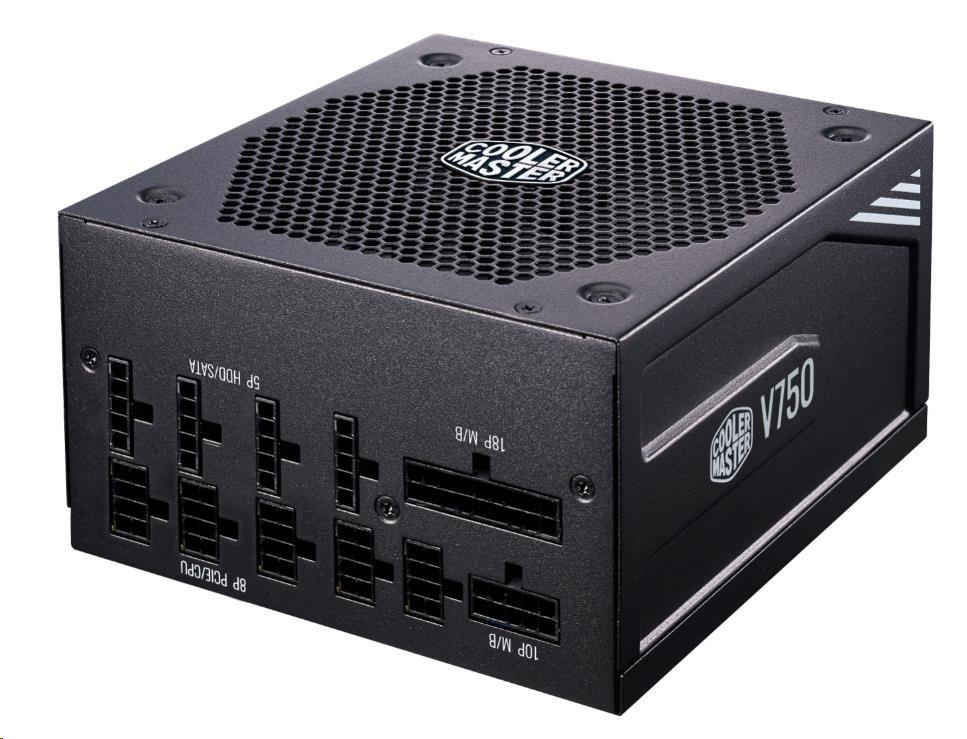

Connectors

ATX 24 Pin

x1

EPS 4+4 Pin

x1

EPS 8 Pin

x1

SATA

x12

Peripheral 4 Pin

x4

FDD

x1

PCI-e 6+2 Pin

x4

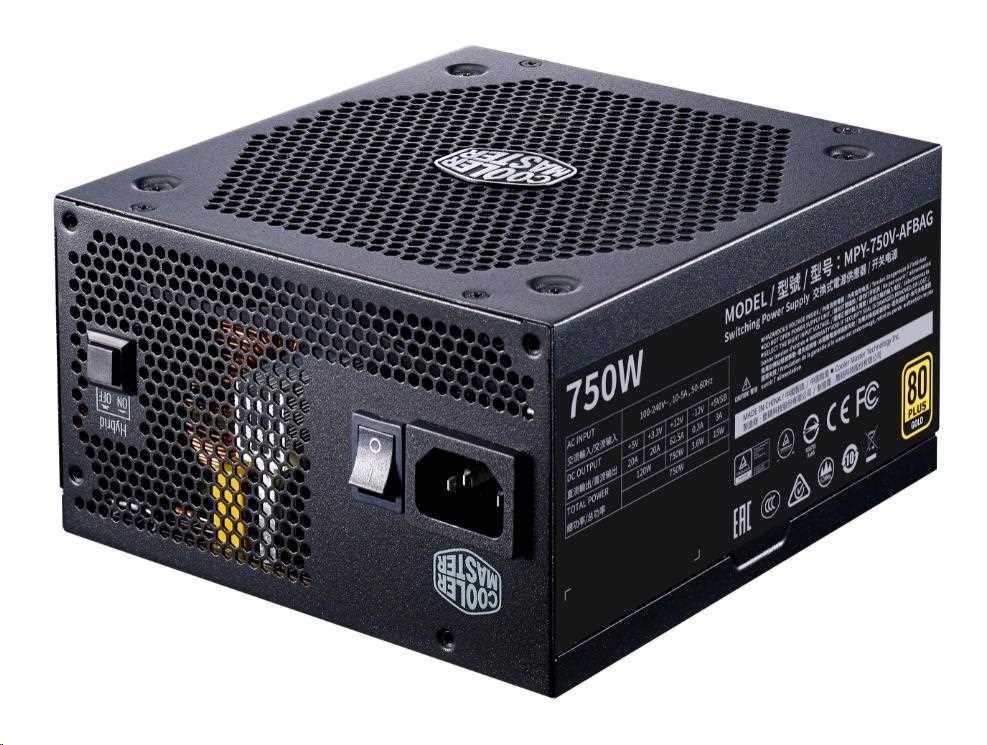

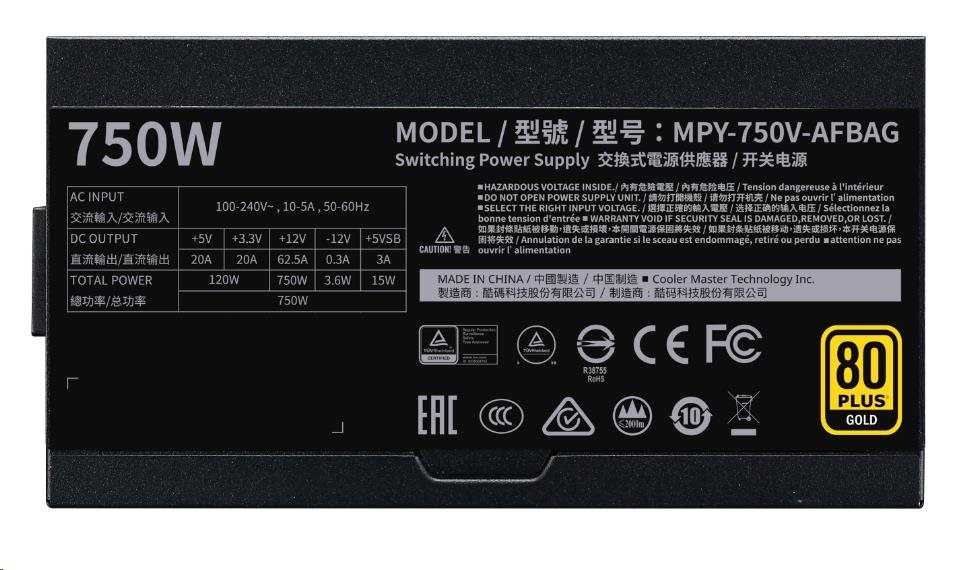

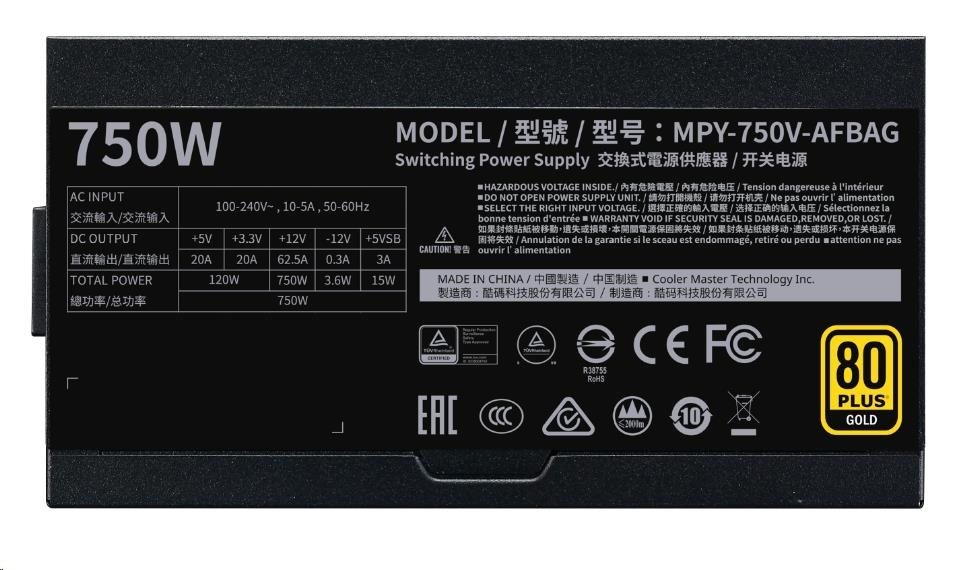

AC INPUT

100-240V~ 10-5A 50-60Hz

DC OUTPUT

+3.3V

+5V

+12V

-12V

+5Vstb

20A

20A

62A

0.3A

3A

TOTAL POWER

130W

744W

3.6W

15W

750W

.
ParametryPorovnání
Formát zdroje
ATX
Konektory
PCIe 8-pin
Konektory
8pin CPU 2x
Konektory
PCIe 6-pin
Konektory
SATA 15-pin
Konektory pro základní desku
ATX 24-pin
Efektivita zdroje
80 Plus Gold
Modulární kabeláž
Ano
Výkon zdroje (W)
750
