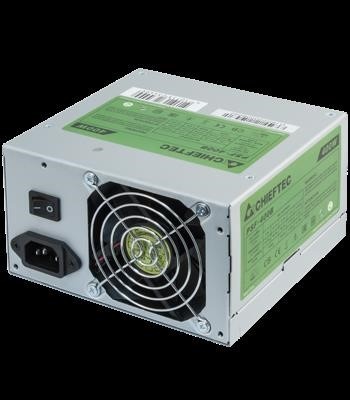

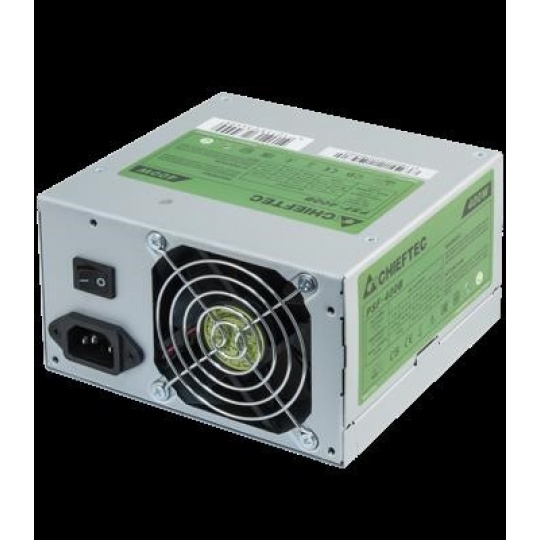

CHIEFTEC zdroj PSF-400B, 400W, ATX-12V 2.3, pasivní PFC pro 19" 2U, 3U, 4U and 5U
Popis a parametry
CHIEFTEC zdroj PSF-400B, 400W, ATX-12V 2.3, pasivní PFC pro 19" 2U, 3U, 4U and 5U
http://www.chieftec.eu/en/psus/smart-series/psf-400a-new.html
Performance
| AC Input:
| 115V-230V / 5.5A
|
| Frequency:
| 50-60 Hz
|
| +5V:
| 20A
|
| +3,3V:
| 24A
|
| +5V & +3,3V combined:
| 120W
|
| +12V 1:
| 18A
|
| +12V 2:
| 18A
|
| +12V 1 & +12V 2 combined:
| 300W
|
| +12V 3:
| N/A
|
| +12V 4:
| N/A
|
| +12V 3 & +12V 4 combined:
| N/A
|
| P.F.:
| >0,9
|
| -12V:
| 0,3A / 3,6W
|
| +5VSB:
| 2,5A / 12,5W
|
| Maximum Load:
| 400W
|
Connectors:
| 24PIN:
|
| ===450mm===[24PIN]
|
| SATA:
|
| ===450mm===[SATA]===150mm===[SATA]
|
| SATA:
|
| ===450mm===[SATA]===150mm===[SATA]
|
| Molex/Floppy:
|
| ===450mm===[Molex]===150mm===[Molex]===150mm===[Molex]===150mm===[Floppy]
|
| 6 PIN PCIe:
|
| ===450mm===[6PIN PCIe]
|
| 8 PIN EPS (4+4)
|
| ===450mm===[8PIN EPS]
|
ParametryPorovnání
Formát zdroje
ATX
Konektory
FDD
Konektory pro základní desku
EPS 8-pin
Efektivita zdroje
85+
Modulární kabeláž
Ne
Výkon zdroje (W)
400
