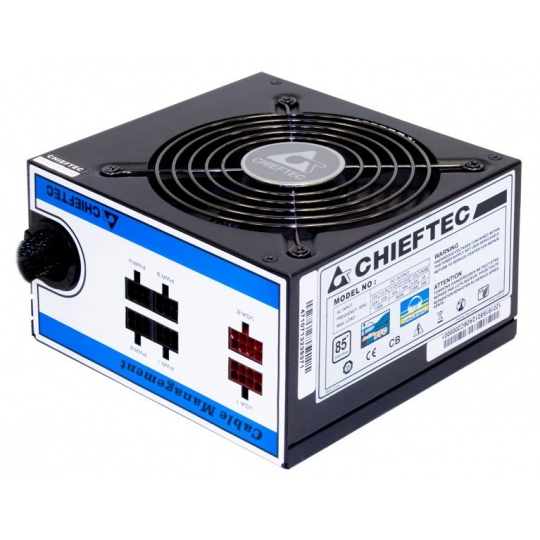

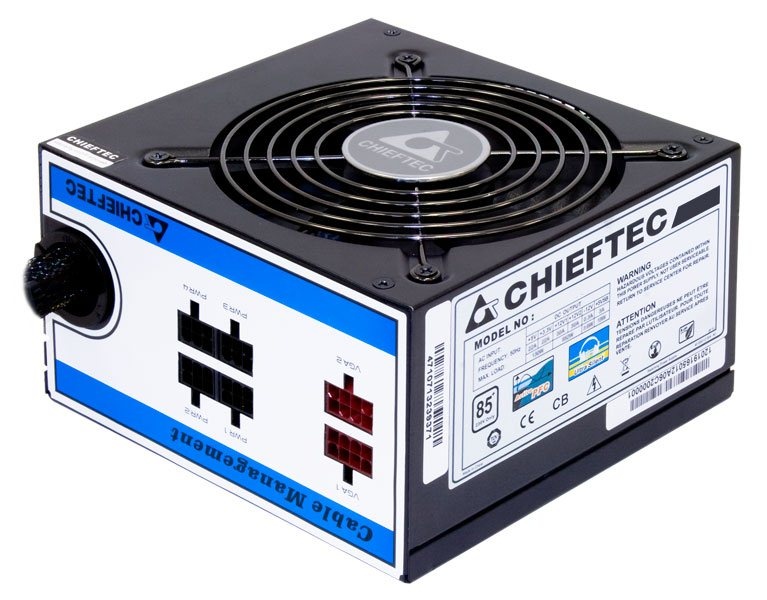

CHIEFTEC zdroj A80 Series, CTG-750C, 750W, 12cm fan, Active PFC, Modular, Retail, 85+
CHIEFTEC zdroj A80 Series, CTG-750C, 750W, 12cm fan, Active PFC, Modular, Retail, 85+
http://www.chieftec.eu/en/psus/a-80-series/ctg-750c.html
Performance:
| AC Input:
| 230V / 6A
|
| Frequency:
| 50 Hz
|
| +5V:
| 22A
|
| +3,3V:
| 22A
|
| +5V & +3,3V combined:
| 130W
|
| +12V 1:
| 35A
|
| +12V 2:
| 35A
|
| +12V 1 & +12V 2 combined:
| 648W
|
| +12V 3:
| N/A
|
| +12V 4:
| N/A
|
| +12V 3 & +12V 4 combined:
| N/A
|
| P.F.:
| >0,9
|
| -12V:
| 0,3A / 3,6W
|
| +5VSB:
| 3,0A / 15W
|
| Maximum Load:
| 750W
|
Connectors:
| Native cable:
| |
| 24PIN:
| |
| ===450mm===[24PIN]
| |
| 8PIN EPS / 4PIN 12V:
| |
| ===550mm===[8PIN EPS]===150mm===[4PIN 12V]
| |
| Modular cable:
| |
| SATA:
| |
| ===450mm===[SATA]===150mm===[SATA]===150mm===[SATA]
| |
| SATA:
| |
| ===450mm===[SATA]===150mm===[SATA]===150mm===[SATA]
| |
| Molex / Floppy:
| |
| ===450mm===[Molex]===150mm===[Molex]===150mm===[Floppy]
| |
| Molex / Floppy:
| |
| ===450mm===[Molex]===150mm===[Molex]===150mm===[Floppy]
| |
| 8PIN PCIe (6+2):
| |
| ===450mm===[PCIe]
| |
| 8PIN PCIe (6+2):
| |
| ===450mm===[PCIe]
|
Features:
| Specification:
| ATX 12V 2.3
|
| Form factor:
| PS II
|
| Efficiency:
| >85%
|
| Dimension (DxWxH):
| 140 mm x 150 mm x 87 mm
|
| PFC:
| Active PFC (0,9)
|
| Fan:
| 120mm silent fan
|
| Security:
| UVP (Undervoltage protection)
|
| OVP (Overvoltage protection)
| |
| SCP (Short-circuit protection)
| |
| OPP (Overload protection)
| |
| AFC (Automatic Fanspeed Control)
| |
| MTBF (mean time between failure): >50.000h
| |
| Certificates:
| 85+ only 230V
|
