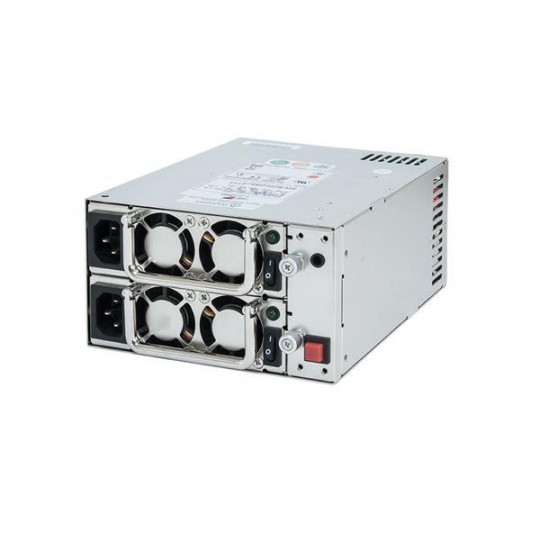

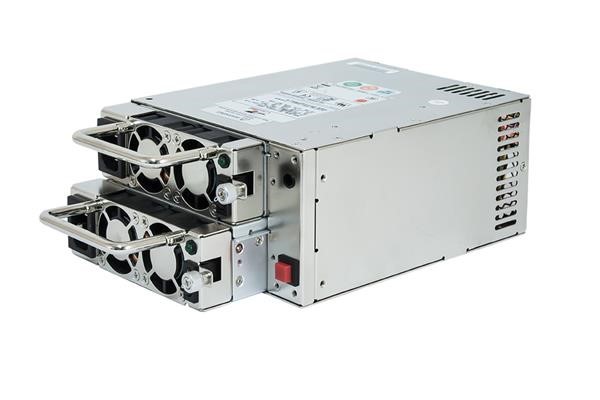

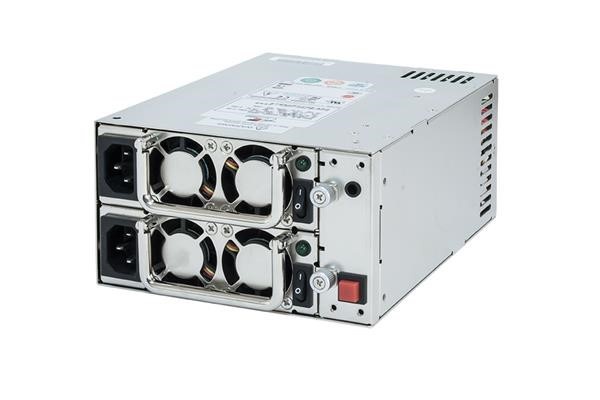

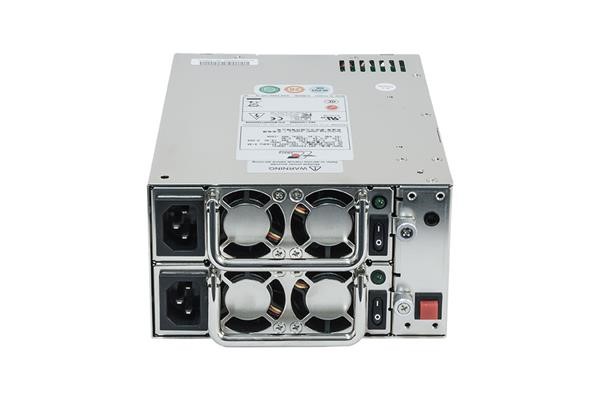

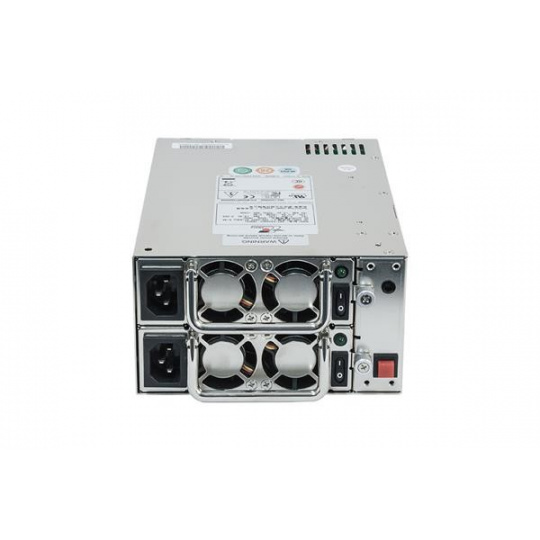

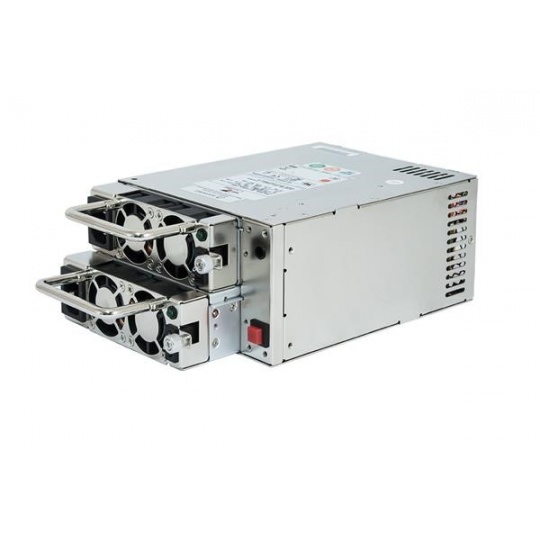

CHIEFTEC redundantní zdroj MRW-5600G, 2x600W, ATX-12V V.2.3, PS-2 type, PFC, 80+ Gold
CHIEFTEC redundantní zdroj MRW-5600G, 2x600W, ATX-12V V.2.3, PS-2 type, PFC, 80+ Gold
http://www.chieftec.eu/en/psus/redundant-psus/mrw-5600g.html
| Specification:
| ATX 12V 2.3
|
| Form factor:
| PS II
|
| Efficiency:
| >90%
|
| Dimension (DxWxH):
| 185 mm x 150 mm x 87 mm
|
| PFC:
| Active PFC (0,9)
|
| Fan:
| 40mm fan (2x 40mm per module)
|
| Security:
| Metal frame
|

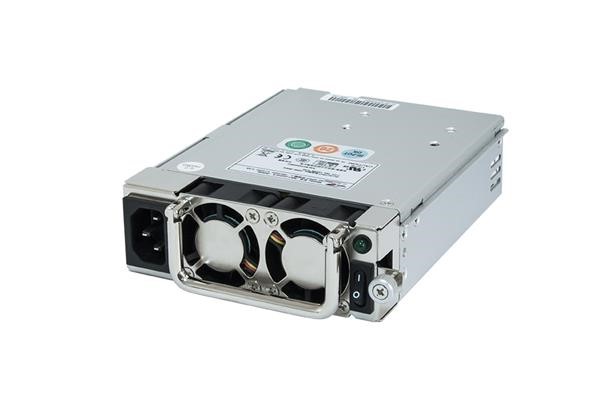

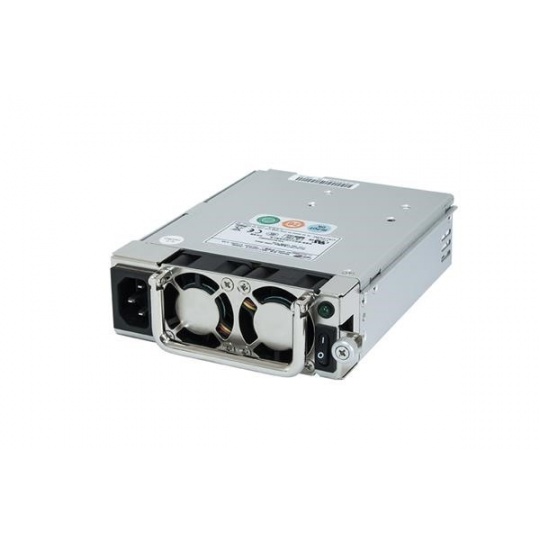

| 2 x 320W modules
| |
| TTL-Signal
| |
| Buzzer- & LED Alarm
| |
| Hot-swap, hot-plug features
| |
| Full range Input 100V~240V
| |
| Meet FCC, CISPR EMI regulation
| |
| Balanced load sharing design
| |
| UVP (Undervoltage protection)
| |
| Dual OVP (Overvoltage protection)
| |
| SCP (Short-circuit protection)
| |
| OPP (Overload protection)
| |
| OCP (Overcurrent protection)
| |
| OTP (Over Temperature Protection)
| |
| Certificates:
| 80PLUS Gold
|
| Performance
| |
| AC Input:
| 100V / 9A | 240V / 4A
|
| Frequency:
| 47-63 Hz
|
| +5V:
| 25A
|
| +3,3V:
| 25A
|
| +12V1:
| 49A
|
| +5V & +3,3V combined:
| 170W
|
| +5V & +3,3V +12V1 combined:
| N/A
|
| P.F.:
| >0,9
|
| -5V:
| N/A
|
| -12V:
| 0,8A
|
| +5VSB:
| 3,5A
|
| Maximum Load:
| 600W
|
| Connectors
| |
| Native cable:
| |
| 24PIN:
| |
| ===600mm===[24PIN]
| |
| SATA:
| |
| ===600mm===[SATA]===200mm===[SATA]
| |
| Molex:
| |
| ===600mm===[Molex]===200mm===[Molex]
| |
| Molex:
| |
| ===600mm===[Molex]===200mm===[Molex]
| |
| Molex/Floppy:
| |
| ===600mm===[Molex]===200mm===[Floppy]
| |
| 8PIN EPS:
| |
| ===600mm===[EPS]
| |
| 8PIN EPS (4+4):
| |
| ===600mm===[EPS]
| |
| TTL Signal-Kabel (red/black):
| |
| ===750mm===[2PIN]
| |
| Buzzer Reset-Kabel (yellow/black):
| |
| ===750mm===[2PIN]
|
